(45)HD-BNC Series

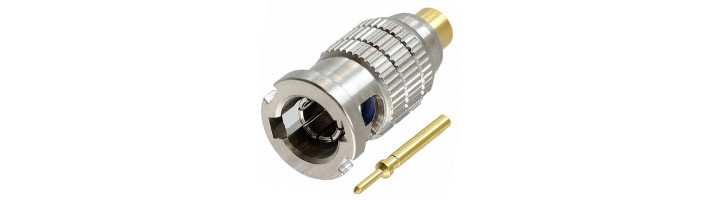

HD-BNC CONNECTOR SERIES
Engineered to enhance electrical and mechanical performance, the HD-BNC connector line features the trusted, push and turn interface of a traditional BNC, providing tactile feedback and a positive lock for quick and guaranteed mating. The HD-BNC product line delivers both true 50 and 75 ohm performance in a footprint 4xs smaller than traditional BNC connectors.

Engineered to enhance electrical and mechanical performance, the HD-BNC connector features the trusted, push and turn interface of a traditional BNC, providing tactile feedback and a positive lock for quick and guaranteed mating. Using the same cable prep and termination specifications of legacy broadcast connectors makes adopting HD-BNC seamless.

Features and Benefits
•Trusted bayonet style positive lock
•Closed entry interface
•VSWR or Return Loss: 30dB min @ 6GHz (for all straight configurations)
•Complete product portfolio including Calibration kit, Terminations and Precision adapters
•Assured mating with visual indicator

Applications
•Broadcast
•Military
•Instrumentation

HD-BNC 50 Ohm Specifications

Electrical
Impedance 50 Ohms
Frequency Range 0-6 GHz
Contact Resistance
Center Contact 5 m ohm
Outer Contact 2.5 m ohm
Dielectric Withstanding Voltage 500 VRMS
Voltage Rating 170 V
Insulation Resistance 10000 MΩ min
Return Loss 30 dB min *DC-6 GHz for straight configuration

Mechanical
Mating Bayonet positive locking, visual indicator
Cable Affixment (Braid/Jacket) Hex crimp
Cable Affixment (Center Conductor) Solder/ crimp
Tool Conventional crimp/ die sets
Contact Captivation All types as noted
Connector Durability 500 mating cycles min

HD-BNC 75 Ohm Specifications

Electrical
Impedance 75 Ohms
Frequency Range 0-6 GHz
Contact Resistance
Center Contact 5 m ohm
Outer Contact 2.5 m ohm
Dielectric Withstanding Voltage 500 VRMS
Voltage Rating 170 V
Insulation Resistance 10000 MΩ min
Data Rate 3 Gbps
Return Loss 30 dB min @ 3 GHz

Mechanical
Mating Bayonet positive locking, visual indicator
Cable Affixment (Braid/Jacket) Hex crimp
Cable Affixment (Center Conductor) Solder/ crimp
Tool Conventional crimp/ die sets
Contact Captivation All types as noted
Connector Durability 500 mating cycles min
