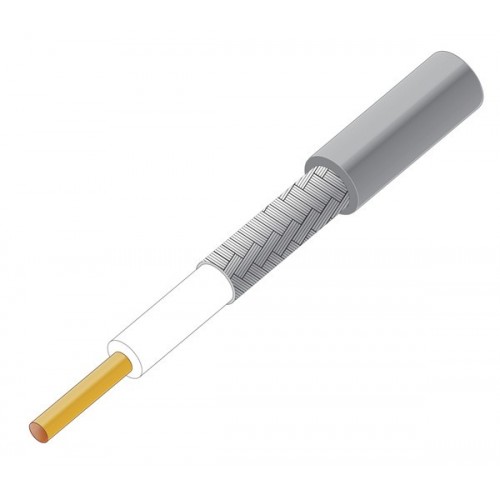

mini coaxial cable 0.81mm

mini coaxial cable 0.81mm
MODEL NO 0.81mm cable

Impedance

 50Ω

Frequency range

0~6  GHz

More detailsInquiry


Construction Spectification

Item

 Material Diamenter (mm)
1. Inner Conductor Silver-Coated Copper 7x0.05
2. Dielectric Perfluoroalkoxy(PFA) 0.40
3. Outer Conductor

Tinned-Coated Copper

 16 / 3 / 0.05 mm  0.65 mm
4. Jacket

Perfluoroalkoxy(PFA)

 0.81

Electrical Characteristics
Capacitance (Pf/M)   96
Impedance (Ohm)   50
Velocity(%)   70
Bending Radius (mm)   4
Max. Oper. Voltage (VMS)   1000
Max. Oper. Frequency (MHz)   6000
Operating Temp. (℃)   -40 to 150

Attenuation (Typical)
Frequency (MHz)   Attenuation (≯dB/1m/Ft)
1000   3.0 / 0.92
3000   5.0 / 1.68
5000   7.5 / 2.29

6000



8.5 / 2.59
  • TITLE: 0.81mm CABLE
  • MODEL NO: 0.81mm CABLE
