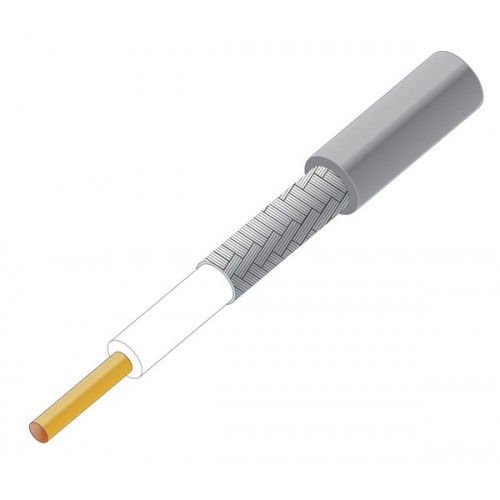

Mini Coaxial 1.32mm Cable

Mini Coaxial 1.32mm Cable
MODEL NO MIC 1.32

Impedance

50Ω

Frequency range

0~6  GHz

More detailsInquiry


Construction Spectification

Item

Material Diamenter (mm)
1. Inner Conductor Silver Played Copper Clad Steel 7x0.08
2. Dielectric PTFE 0.68
3. Outer Conductor

Silver Plated Copper Braid

0.88
4. Jacket

FEP

1.32

Electrical Characteristics
Capacitance (Pf/M)   100
Impedance (Ohm)   50
Velocity(%)   70
Bending Radius (mm)   4
Max. Oper. Voltage (VMS)   1000
Max. Oper. Frequency (MHz)   6000
Operating Temp. (℃)   -55 to 200

Attenuation (Typical)
Frequency (MHz)   Attenuation (≯dB/100m)
1000   240
3000   400
5000   510

6000



560

  • TITLE: Mini Coaxial 1.32mm Cable
  • MODEL NO: MIC 1.32
