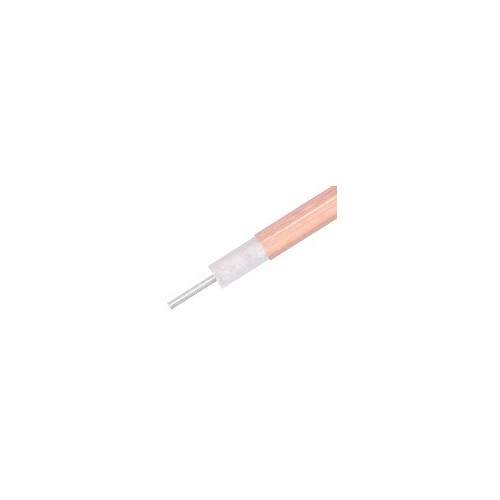

.047 Semi-Rigid Coax Cable with a Bare Copper Outer Conductor in Coiled Sections

.047 Semi-Rigid Coax Cable with a Bare Copper Outer Conductor in Coiled Sections
MODEL NO SY-047CU

Impedance

50Ω

Frequency range

0~40  GHz

More detailsInquiry


Construction Spectification

Item

Material Diamenter (mm)
1. Inner Conductor Silver Played Copper Clad Steel 0.29
2. Dielectric PTFE 0.94
3. Outer Conductor  Copper Tube 1.19

Electrical Characteristics
Capacitance (Pf/M)   95.1
Impedance (Ohm)   50
Cornoa Extinction Voltage(VRMS@60Hz)   1000
Voltage Withstanding (VRMS@60Hz)   2000
Moding Frequency (GHz)   109
Min. Inside Bend Radius (mm)   4.20
Outer Conductor Integrity Temp. (℃)   175
Operating Temp. (℃)   -55 to 125

Attenuation (Typical)
Frequency (GHz) Attenuation (≯dB/100m) Power①/②/③ (Watts CW)
0.5 79.0 80.5 / 67.4 / 62.2
1.0 113.0 56.6 / 47.4 / 43.7
5.0 259.0 24.7 / 20.7 / 19.1
10.0 374.0 17.2 / 14.4 / 13.3
20.0 544.0 11.9 / 9.9 / 9.2
  • MODEL NO: SY-047CU
