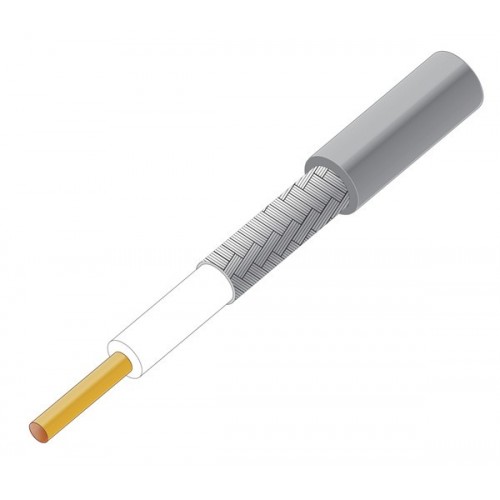

Mini Coaxial 1.13mm Cable

Mini Coaxial 1.13mm Cable
MODEL NO 1.13mm cable

Impedance

50Ω

Frequency range

0~6  GHz

More detailsInquiry


Construction Spectification

Item

Material Diamenter (mm)
1. Inner Conductor Silver Played Copper Clad Steel 7x0.08
2. Dielectric PTFE 0.68
3. Outer Conductor

Silver Plated Copper Braid

0.88
4. Jacket

FEP

1.13

Electrical Characteristics
Capacitance (Pf/M)   95.6
Impedance (Ohm)   50
Velocity(%)   70
Bending Radius (mm)   4
Max. Oper. Voltage (VMS)   1000
Max. Oper. Frequency (MHz)   6000
Operating Temp. (℃)   -55 to 200

Attenuation (Typical)
Frequency (MHz)   Attenuation (≯dB/m/Ft)
1000   2.8 / 0.86
3000   3.5 / 1.1
5000   5.05 / 1.54

6000



5.4 / 1.65

  • TITLE: Mini Coaxial 1.13mm Cable
  • MODEL NO: MIC1.13
